1.流程图

1. 画流程图

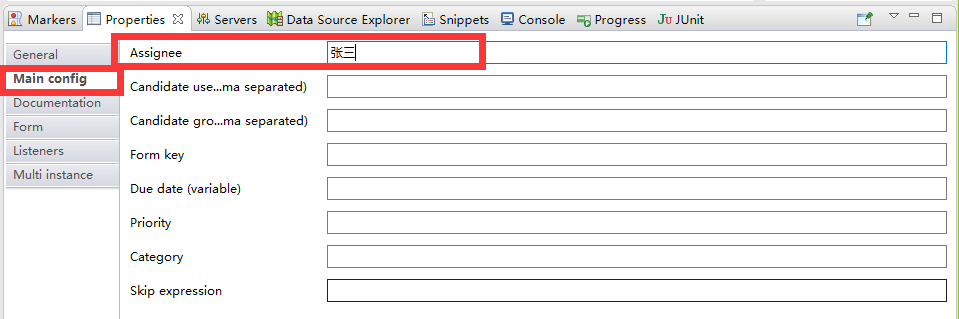

1. 定义代理人

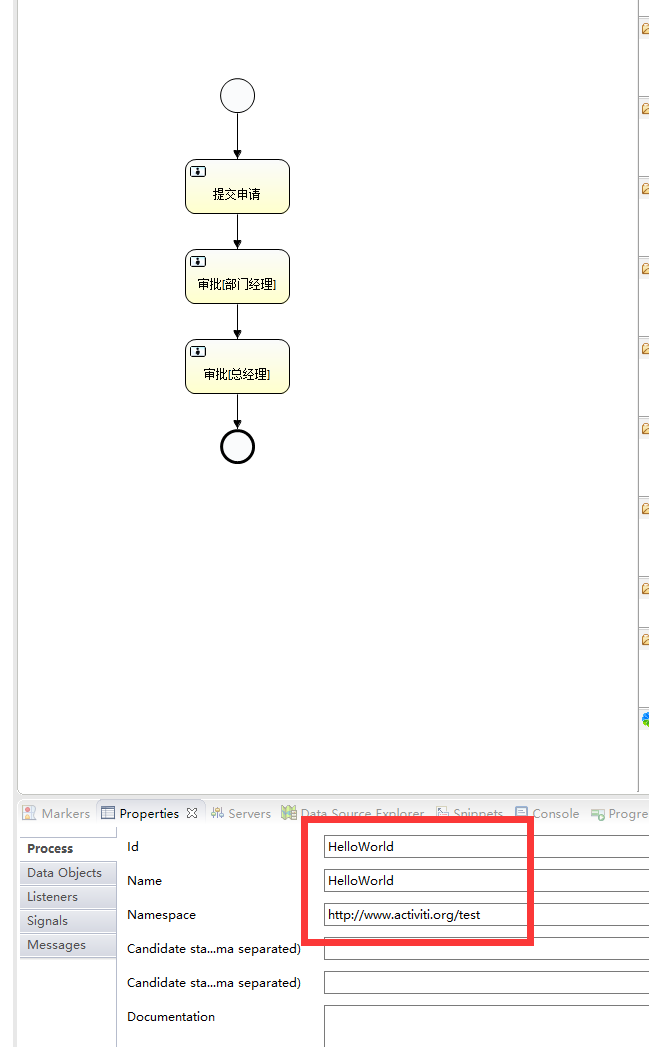

1. 定义流程id和name

2.部署流程

2.1 classpath 方式

    /**
     * 部署流程使用classpath
     */
    @Test
    public void deployProcess01() {
        RepositoryService repositoryService = this.processEngine.getRepositoryService();
        Deployment deploy = repositoryService
                // 创建
                .createDeployment()
                // 名称
                .name("请假流程001")
                // 路径
                .addClasspathResource("HelloWorld.bpm")
                // 路径
                .addClasspathResource("HelloWorld.png")
                // 部署
                .deploy();
        System.out.println("部署成功:流程部署ID = " + deploy.getId());
    }

2.2 inputStream 方式

    /**
     * 部署流程使用zip 流程图的文件必须是xxx.zip
     */
    @Test
    public void deployProcess02() {
        // 获取流文件
        InputStream inputStream = this.getClass().getResourceAsStream("/HelloWorld.zip");
        System.out.println(inputStream);
        RepositoryService repositoryService = this.processEngine.getRepositoryService();
        Deployment deploy = repositoryService
                // 创建
                .createDeployment()
                // 名称
                .name("请假流程001")
                // 添加流文件
                .addZipInputStream(new ZipInputStream(inputStream))
                // 部署
                .deploy();
        System.out.println("部署成功:流程部署ID = " + deploy.getId());
    }

3.启动流程

/**
 * 启动流程
 */
@Test
public void startProcess() {
    RuntimeService runtimeService = this.processEngine.getRuntimeService();
    // 使用id启动
    String processDefinitionId = "HelloWorld_ID:1:2504";
    // runtimeService.startProcessInstanceById(processDefinitionId);
    // 使用key启动
    String processDefinitionKey = "HelloWorld_ID";
    runtimeService.startProcessInstanceByKey(processDefinitionKey);
    System.out.println("流程启动成功");
}

4.查询流程

/**
 * 查询任务
 */
@Test
public void findTask() {
    TaskService taskService = this.processEngine.getTaskService();
    // 按照代理人查询
    String assignee = "张三";
    List<Task> list = taskService.createTaskQuery().taskAssignee(assignee).list();
    if (null != list && list.size() > 0) {
        for (Task task : list) {
            System.out.println("任务ID:" + task.getId());
            System.out.println("流程定义ID:" + task.getProcessInstanceId());
            System.out.println("流程实例ID:" + task.getProcessInstanceId());
            System.out.println("流程执行ID:" + task.getExecutionId());
            System.out.println("人物名称:" + task.getName());
            System.out.println("任务办理人:" + task.getAssignee());
            System.out.println("^^^^^^^^^^^^^^^^^^^");
        }
    }

5.办理流程

/**
 * 办理任务
 */
@Test
public void conpleteTask() {
    TaskService taskService = this.processEngine.getTaskService();
    // 当前的流程任务id
    String taskId = "10004";
    taskService.complete(taskId);
    System.out.println("任务完成");
}
